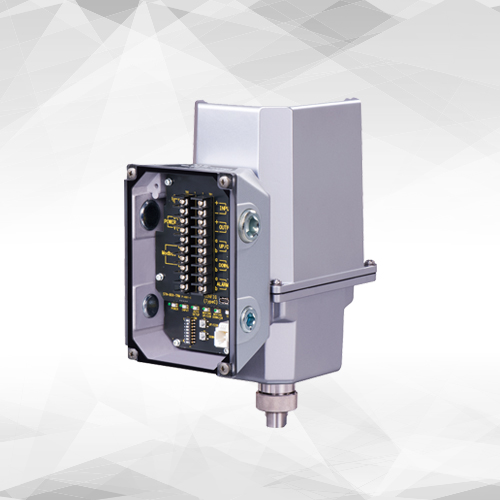

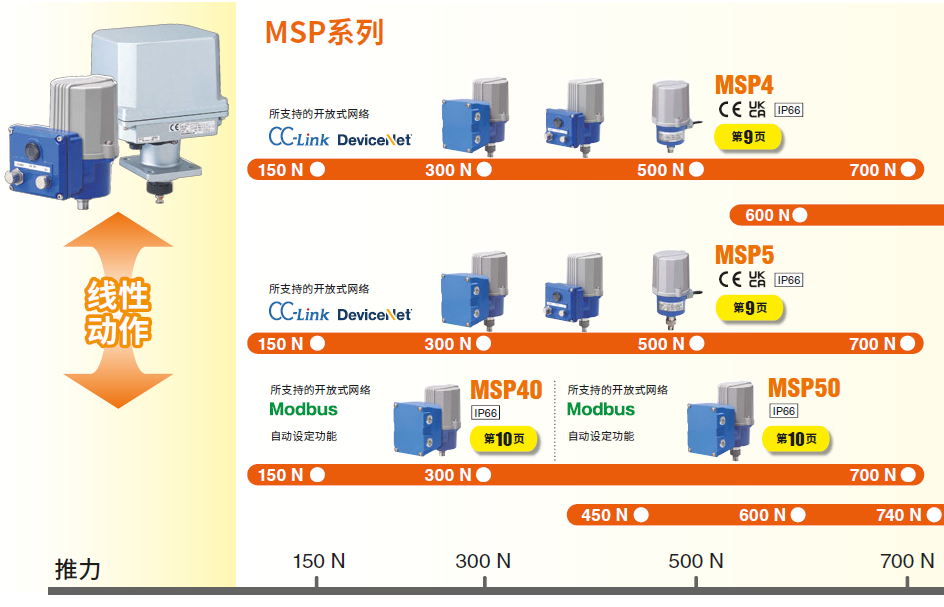

MSP 系列產品特別處
◆高解析度配置，用於閥門控制
◆內建回饋定位器與電動限制器

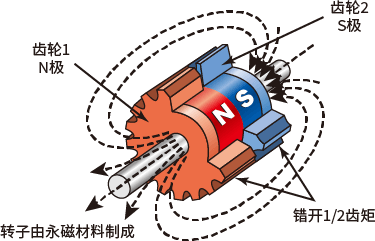

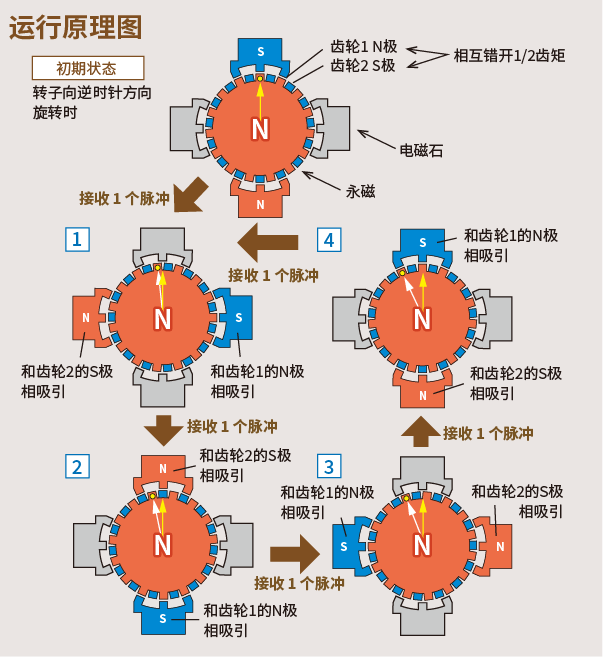

◆無刷步進馬達確保使用壽命
◆1/1000高分辨率
◆與CC-Link或Device Net的接口
| Model No. | MSP4 | MSP5 | MSP6 |
| MSP4D (DeviceNet) | MSP5D (DeviceNet) | MSP6D (DeviceNet) | |
| MSP4C, MSP4C2 (CC-Link) | MSP5C, MSP5C2 (CC-Link) | MSP6C (CC-Link) | |
| Stroke | 15 mm (0.59”) | 20 mm (0.79”) | 40 mm (1.57”) |
| Position Detection | Potentiometer | ||
| Thrust | 700 N | 700 N | 2,500 N |
| 157 lbf | 157 lbf | 562 lbf | |
| Drive | Stepping motor | ||
| Sealing pressure | Spring at the full-closed position | ||
| Motor Protection | Overload (lock) protection | ||
| Restart limiting timer | |||
| Operation Time | MSP4, MSP4C, MSP4C2 | MSP5, MSP5C, MSP5C2 | MSP6, MSP6C |
| @10 mm | 5 sec. / 150 N | 5 sec. / 150 N | 5 sec. / 600 N |
| 9 sec. / 300 N | 9 sec. / 300 N | 8 sec. / 1,200 N | |
| 18 sec. / 700 N | 18 sec. / 700 N | 15 sec. / 2,500 N | |
| MSP4D | MSP5D | MSP6D | |
| 24 sec. / 500 N | 12 sec. / 300 N | 9 sec. / 600 N | |
| 30 sec. / 700 N | 24 sec. / 500 N | 18 sec. / 1,200 N | |
| 30 sec. / 700 N | 24 sec. / 1,800 N | ||
| 36 sec. / 2,500 N | |||
| Resolution | 1/1,000 or 0.015 mm (deadband set to 0.1 %) | 1/1,000 or 0.02 mm | |
| (deadband set to 0.1 %) | |||
| Input Signal | 4-20 mA or 1-5 V DC | ||
| DeviceNet for MSP×D, CC-Link for MSP×C | |||
| Position Signal | 1-5 V DC | ||
| DeviceNet for MSP×D, CC-Link for MSP×C | |||
| Sequential Control Signal | “Full-open” and “full-closed” contact output | ||
| Limit switch: 125 V AC @0.75 A, 30 V DC @0.6 A | |||
| Forced Operation | Contact signal input: 5 V DC @2.5 mA | ||
| Failsafe Operation (optional) | — | ||
| Manual Operation | — | ||
| Operating Temperature | -5 to + 55 °C (23 to 131 °F) | ||
| Degree of Protection | IP66 | ||
| Power Input | 100 - 120 V AC, 200 - 240 V AC (not available for MSP×D or MSP×C) | ||
| 24 V DC | |||
| Housing Material | Diecast aluminum | ||
| Vibration | 0.5 G | ||
| Weight | 1.2 kg (DC powered) | 1.2 kg (DC powered) | 2.7 kg (DC powered) |
| 1.4 kg (AC powered) | 1.4 kg (AC powered) | 2.8 kg (AC powered) | |
| 1.5 kg (MSP4D, MSP4C) | 1.5 kg (MSP5D, MSP5C) | 3.0 kg (MSP6D, MSP6C) | |
| 1.8 kg (MSP4C2) | 1.8 kg (MSP5C2) | ||
| Standards & Approvals | CE | CE | CE |
